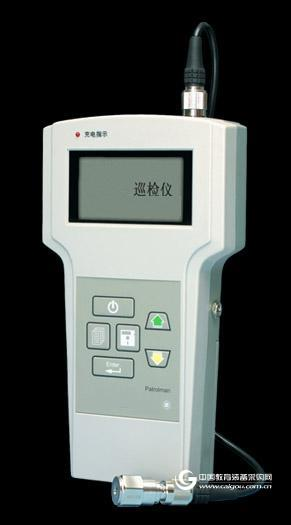

Inspection instrument working vibration meter vibration meter model: DP-HY-106
The inspection instrument is a new type of data acquisition instrument. It can be used in two ways:
1) Analyze software and communication software running above WINDOWS 98 (Second Edition) to form a vibration signal acquisition and analysis system for managing and implementing equipment condition monitoring.
2) As a stand-alone vibrometer, the instrument can measure the acceleration (true peak), velocity (effective value) and displacement (true peak-to-peak) of broadband vibration, and can also measure the surface temperature of the device for unplanned management. Under the device check.
The key operation of DP-HY-106 is simple and easy to learn. The graphic dot matrix liquid crystal can display graphics and characters, the interface is straightforward, and the prompt information is all finished.
The advanced equipment label identification device provides advanced support means for measuring point confirmation and standardizes the inspection operation process.
The communication operation with the PC adopts a non-contact infrared interface, which is safe, reliable, convenient and practical.
The supporting software is based on an efficient and reliable database, with advanced management functions, which can easily generate planned inspection tasks, provide effective support for enterprises to carry out equipment condition monitoring, and various practical analysis functions for equipment fault diagnosis and maintenance. The implementation of the plan provides a scientific basis.
2 Technical parameters
1) Frequency range:
Acceleration Speed ​​Displacement Frequency range 10Hz～5kHz 10Hz～1kHz 10Hz～100Hz Frequency resolution 6.25Hz 2.5Hz 0.5Hz Sample points 2048 1024 5122) Range:
Acceleration 0.1m/s2～200.0m/s2 true peak speed 0.1mm/s~140.0mm/s RMS displacement 1um～4000um true peak-peak temperature -15°C～150°C3) Memory: 512k SRAM (can store 100 to 400 waveform data).
4) Automatic shutdown: In the non-test state, 5 minutes after the stop button operation, it will automatically shut down.
5) Alarm: There is sound, Chinese characters and graphic information prompts when the data overflows or is greater than the alarm value.
6) Dimensions: 230mm × 120mm × 43mm.
7) Normal working conditions
Ambient temperature: 0 ° C ~ 40 ° C;
Relative humidity: ≤80%;
Non-corrosive gases and strong electromagnetic interference
