The aseptic homogenizer developed by Shanghai Yuming Instrument Co., Ltd. is mainly used for tissue dispersion in the biotechnology field, sample preparation in the pharmaceutical field, enzyme treatment in the food industry, and in the pharmaceutical industry, cosmetics industry, paint industry and petrochemical industry. This product is suitable for the homogenization of tumor tissues (such as intestinal cancer, gastric cancer, liver cancer, breast cancer). It can obtain a large number of single cells (up to 2 × 105 within 2 minutes). Tissue cells are softly broken. The device adopts a stainless steel system, which can effectively separate the sample surface of the protective body and the homogeneous sample of the contained microorganisms. The sample is packed in a disposable sterile homogeneous bag without contact with the instrument. It has the advantages of fast, no pollution and no sample. Damage, accurate results, no heating, homogeneous and soft, no sterilization, no need to wash utensils, good repeatability requirements. Sterile homogenizers are widely used for the homogenization of animal tissues and cosmetics, and are particularly suitable for the preparation of microbiological samples. The samples are characterized by no pollution, no damage, no heating, no sterilization, and no need to wash utensils.
The precise coordination of the rotor and stator, the claw structure of the working head (manufactured by the rotor and stator forgings), bidirectional suction, high shear efficiency.
Intermittent high-shear dispersion emulsifying homogenizer is the high-speed, strong circumferential tangential speed, angular speed and other comprehensive kinetic energy efficiency formed by the high-speed and stable rotation of the rotor; Strong, reciprocating hydraulic shear, friction, centrifugal extrusion, liquid flow collision and other comprehensive effects are formed, and the materials are circulated in the container to reciprocate the above working process to finally obtain the product.

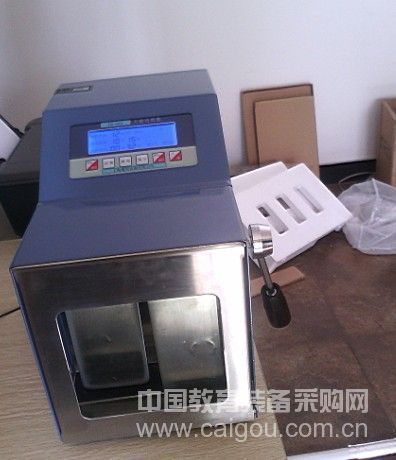

Technical parameters and product pictures of Shanghai Yuming Technology Aseptic Homogenizer
Product description of the flapping aseptic homogenizer:
Sterile homogenizer, also known as beating homogenizer, is widely used in the homogenization of animal tissues and biological samples. It can be used in the fields of food, medicine, cosmetics, clinical, molecular, toxin and bacterial detection It is suitable for the preparation of microbiological testing samples. The device uses a stainless steel system, which can effectively separate the solid sample surface and the contained microbial uniform sample. The sample is packed in a disposable sterile homogeneous bag, does not contact the instrument, has a homogeneous and soft, non-polluting sample, The characteristics of no damage, no heating, no sterilization, and no need to wash the utensils, meet the requirements of fast, accurate results and good repeatability. This product is also suitable for the homogenization of tumor tissues (such as liver cancer, intestinal cancer, gastric cancer, breast cancer), which can obtain a large number of single cells (up to 2 * 105 in 2 minutes), if necessary, by extending the homogenization time, Tissue cells (such as liver, etc.) are softly broken.
Features of flapping aseptic homogenizer:

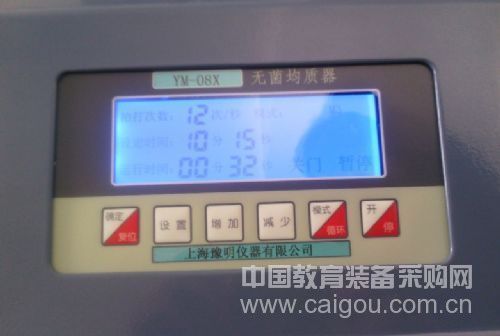

Large screen full computer LCD display, simple operation
Intelligent program control, 3 groups of multi-segment programming, each segment can set parameters such as slap time, slap speed, time, etc.
The cabinet is made of high-quality stainless steel
The slap interval is adjustable, which is convenient for processing samples with different processing volume, and achieves the ideal homogenization effect
Adjustable homogenization time
Fixed or variable homogenization speed
Progressive homogenization, excellent cell protection
Sterile disposable filter bags to ensure hygiene and safety
Fully open door, easy to clean
No contact between sample and homogenizer, no system cleaning required
Large window transparent tempered glass window is easy to observe
Removable adjustable flapper with automatic stop anti-pinch function
Technical parameters of flapping aseptic homogenizer:
Product model YM-08X
Control mode: microcomputer control multi-segment programming
Large LCD display
Slap time 0.1-99 minutes 59 seconds or continuous operation
Slap speed 3 ～ 12 times / sec
Multi-segment programming can set any parameter combination
Parameter storage: 3 groups of programming parameters saved
Temperature control function
Temperature control setting range
Temperature control range
Disinfection function
Effective volume 3 ～ 400ml
Sterile bag size 17 × 30cm
Slapping box stainless steel
Adjustable span between 0 ～ 50mm
Power supply 220VAC / 50Hz
Start mode soft start
Pause function
Power 200W
Anti-pinch function with automatic stop anti-pinch function
Other detachable windows, adjustable slap version, tempered glass safety door
Dimensions 420 × 245 × 390mm
Weight 18KG
