Zeolite runner adsorption concentration principle - ROTOR
Wen / Fengchao

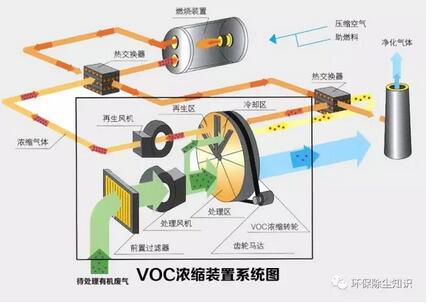

The zeolite runner concentrates the high-volume, low-concentration exhaust gas to a high-concentration, small-volume exhaust gas, thereby reducing the equipment input cost and operating cost, and improving the high-efficiency treatment of the voc exhaust gas. In the case of high-volume, low-concentration exhaust gas combustion and recovery, if there is no zeolite runner, direct combustion, the exhaust gas treatment equipment is not only bulky, but also the operating costs will be huge.

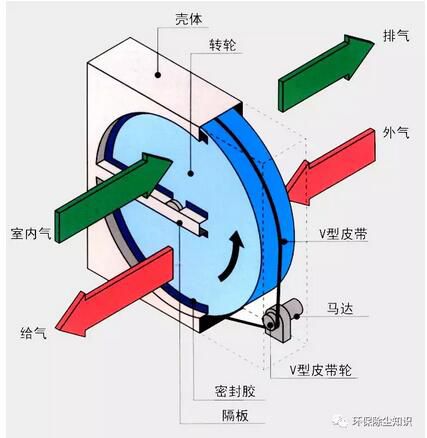

Basic principle structure of zeolite runner

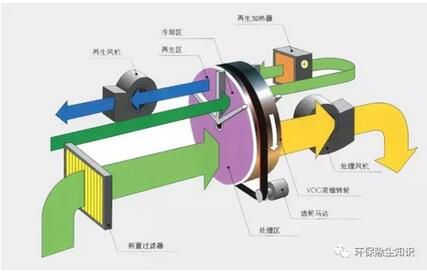

The zeolite runner concentration zone can be divided into a treatment zone, a regeneration zone, and a cooling zone, and the concentration runner continuously operates in each zone.
After the VOC organic exhaust gas passes through the pre-filter, it passes through the treatment zone of the concentrated revolving device. The VOCs in the treatment zone are adsorbed and removed by the adsorbent, and the purified air is discharged from the treatment section of the concentration runner.
The organic exhaust gas VOCs adsorbed in the concentrated rotor are desorbed and concentrated to a degree of 5-15 times by hot air treatment in the regeneration zone.
The concentrated runner is cooled in the cooling zone, and the air passing through the cooling zone is heated and used as regeneration air to achieve energy saving effect.
Zeolite runner for semiconductor manufacturing, LCD liquid crystal manufacturing
Features
1. High adsorption and desorption efficiency.
2. The pressure drop generated by the adsorption of VOCs by the zeolite runner is extremely low, which can greatly reduce the power consumption.
3. The original high-volume, low-concentration VOCs are converted into low-volume, high-concentration exhaust gas, and the concentration multiple is 5-20 times, which greatly reduces the specifications of the post-processing equipment and lowers the operating cost.
4. The overall system is modular in design, with minimal space requirements, and provides a continuous and unmanned control mode.
5. System automation control, single button start, easy to operate, and can be used with human-machine interface to monitor important operational data.
Zeolite runner application field
>Organic waste gas treatment in the gravure printing industry
>Organic Waste Gas Treatment in Semiconductor Manufacturing
>Organic waste gas treatment in lithium battery manufacturing
>Organic waste gas treatment in the coating industry
>Organic waste gas treatment in the chemical industry
>Organic waste gas treatment in the pharmaceutical industry
>Organic waste gas treatment in the food industry
>Organic waste gas treatment in the film industry
>Organic waste gas treatment in the home appliance industry
