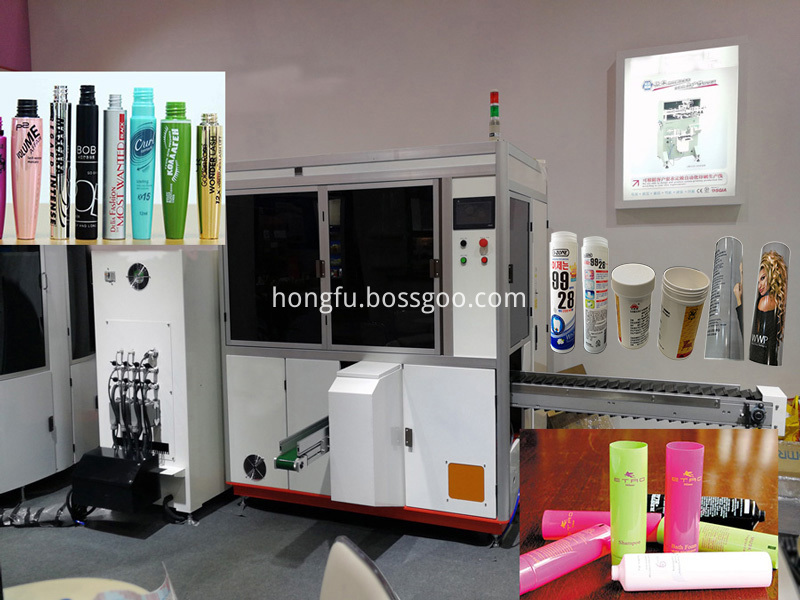

HK-175 Automatic Heat Transfer Machine for Bottles Tubes
The HK175 iAutomatic Heat Transfer Machine is desinged for Bottles , Cosmetic Soft Tubes, Baby Bottles Heat Transfer Printing Machine,
The HK175 is driven by a 12 station vertically mounted rotary indexing table that is equipped with a high-end European MOTOVARIO brand (Italian) main drive motor.
High precision vertical rotary indexer
OMRON PLC controlled with touch screen
Mechanically synchronized stamping heads for precise stamping results
In-feed loading conveyor and auto-unloading
Quick and easy set-up and change-overs
Optical re-registration device and magnetic motor
Adjustable squeegee angle and height
Tech-data
|
Printing diameter |
8mm-75mm |
|
Printing Length |
15mm-150mm |
|
Max.printing speed |
40pcs/min |
|
Power |
380V 3Phase 50Hz/60Hz |
|
Air requirement |
5-7bar,100L/MIN |
|
Power consumption |
4500W |
|
Mechine Dimension(LxWxH) |
2000X1700X1900mm |
Semi Auto Heat Transfer Printing Machine, Semi-automatic heat-transfer machine showed irregular shape, so it can also be referred to as the irregular semi-automatic hot press ,heat-transfer machine Stamping pressure, temperature and speed adjustable. Semi-automatic heat-transfer machine USES OMRON optical sensor, accurate stamping registration,Oil cylinder installed to stabilized transferring,.XYR adjusting worktable.
Semi Auto Heat Transfer Printing Machine
Semi Auto Heat Transfer Printing Machine,High Resolution Semi Auto Heat Transfer Printing Machine,Eco Semi Auto Heat Transfer Printing Machine,Water Transfer Printing Machine
